Kernel Core Contracts

The kernel components are responsible for managing the unified state and executing essential logic. The components on the hub are:
  • Kernel Manager (control plane): The entrypoint for intents. It checks permissions, routes calls and emits tasks (including reverts).
  • Kernel Logic/State (data plane): This contains your app’s storage and core math.
  • Shared infra: This includes a mailbox/registry for executors and endpoints.

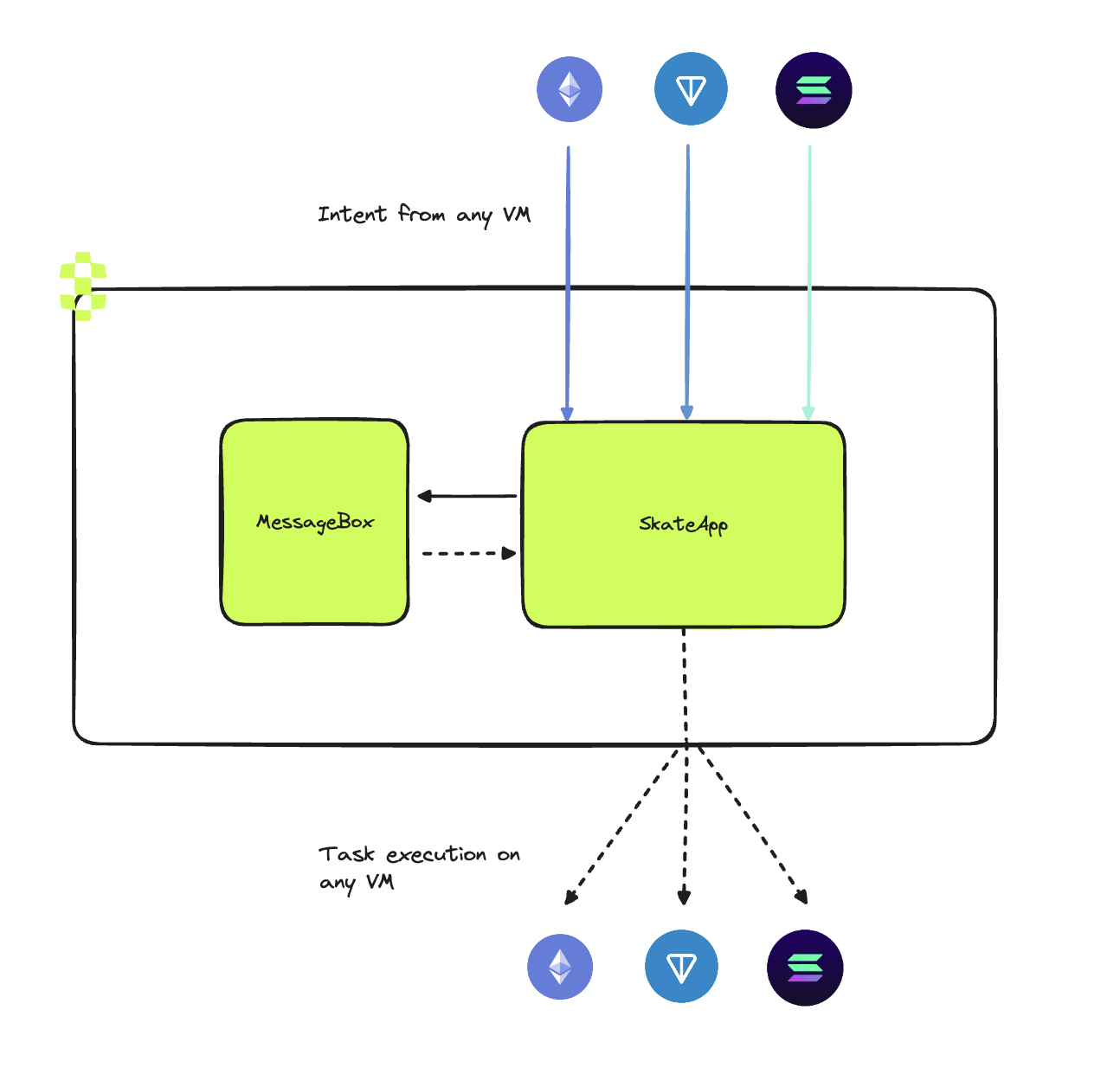

This structure is app-agnostic and can be used for AMMs, orderbooks, RFQ engines, auctions, games, allowlists, and more. An overview of the interaction with Kernel is shown in the diagram below:

Kernel Diagram

​
Bytes-first messaging

All cross-boundary payloads are bytes. Each app defines its own encoding and math.
struct Intent {
  bytes32 actionId;        // unique within origin chain (see below)
  bytes32 user;            // cross-VM user id
  uint64  originChainId;   // CHAIN enum
  uint8   originVmType;    // e.g., 1=EVM, 2=TON, 3=SVM, 4=Move, ...
  address appAddress;      // kernel manager on hub
  bytes   appCalldata;     // app-defined
  uint64  deadline;        // optional
}

​
Cross-VM addresses as bytes32

  • Ethereum/EVM: 20 bytes left-padded to 32.
  • Solana (SVM): base58 pubkey decoded to 32 bytes.
  • Sui/Aptos (Move): already 32 bytes; store as-is.
All comparisons on the kernel use bytes32.

​
Settlement, failure, refunds

  • Success: task targets a specific destChainId and destVmType; periphery gateway verifies and settles from staged funds.
  • Failure (correct): kernel emits a revert task back to the source periphery. That periphery runs the app’s refund logic for that action only.
  • Idempotent: both settlement and revert must be safe to replay and must reject duplicates by actionId.

​
Action identity and chain ids

  • Action ID: unique per origin chain, computed as a hash of (actionCount || chainId).
  • Chain ids (wrappers used for SVM/Move where needed):
CHAIN enum
enum CHAIN {
  SKATE       = 5050,
  SOLANA      = 901,
  ECLIPSE     = 902,
  SOON        = 903,
  SUI         = 1001,
  APTOS       = 1002,
  MOVEMENT    = 1003,
  BASE        = 8453,
  ARBITRUM    = 42161,
  BSC         = 56,
  MANTLE      = 5000,
  OPTIMISM    = 10,
  ETHEREUM    = 1,
  HYPERLIQUID = 999,
  PLUME       = 98866,
  ZG          = 16661
}

​
How any app uses this

  • Periphery: stage assets (if any), pack action bytes, emit events.
  • Kernel manager: validate, call core logic, emit task(s) with the right destChainId.
  • Core logic/state: keep all app state on the hub.
  • Periphery gateway: verify task, settle or refund only that action.
This is the whole model: one hub state, many periphery endpoints, and clean bytes-based messages.

​
Kernel Composition

Here’s how the kernel fits together. It links user wallets across chains, accepts signed intents from apps, emits tasks for off-chain executors, and tracks settlement.

​
What each contract does

  • AccountRegistry: Binds a user’s wallets across VM types (EVM and non-EVM) into one account.
  • MessageBox: Validates an intent, prevents duplicates, emits tasks, and marks them as settled.
  • SkateApp (base): App scaffold. Runs app logic, returns tasks, and hands them to MessageBox.

​
How they work together

  1. The relayer registers VM types and maps chain IDs.
  2. A user links wallets. EVM signatures are checked on-chain. Non-EVM is recorded for off-chain checks.
  3. The user signs an intent. The app calls processIntent.
  4. App logic returns Task[]. MessageBox verifies the intent and emits TaskSubmitted events.
  5. Executors pick up tasks and execute on the target chain(s).
  6. The relayer calls setTaskAsExecuted to mark completion.
This ensures one user, many chains, a clean intent flow, and no double execution.
Goal: Keep one account number per user across VMs.What it stores:
  • VM list: vm[vmType] and vmCount.
  • Chain → VM type: chainIdToVmType.
  • Wallet → account: references[keccak256(vmType, wallet)].
  • Account → wallets: accounts[accountNumber] (array of {vmType, addr}).
  • Admin: _relayer.
Key calls:
  • initialize(relayer): sets the relayer and seeds VM type 1 as “EVM”.
  • registerVm(name): add a VM type (relayer only).
  • setVmTypesToChainIds(vmTypes[], chainIds[]): map chains (relayer only).
  • bindWallet(vmType1, wallet1, vmType2, wallet2, sig1, sig2):
    • VM types must be registered and in increasing order.
    • If vmType1 == 1, sig1 must recover to wallet1 using the bind hash.
    • If both wallets are new → create a new account and attach both.
    • If one is already bound → attach the other to the same account.
    • If both are already bound (to anything) → reject (no merging two existing accounts).
Reads: getWallets, getWalletBindingStatus, getAccountNumber, getVmTypeByChainId, getVmCount.Signature preimage (EVM binding): getBindEVMHash(wallet1, vmType2, wallet2) encodes (0, wallet1, vmType2, wallet2) and uses the standard Ethereum signed message prefix.Permissions:
  • Owner: upgrades, set relayer.
  • Relayer: VM admin + wallet binding entrypoint.
Goal: Be the outbox everyone trusts. Validate once. Emit tasks once. Mark settlement once.What it stores:
  • _executorRegistry: who can originate task submissions (tx.origin is checked).
  • _relayer: marks settlement.
  • _taskId: running counter.
  • _isTaskExecuted[taskId]: settlement flag.
  • _isActionExecuted[chainId][actionId] → taskId: global dedup index.
  • _nonce[user]: per-user nonces for replay protection.
Key calls:
  • submitTasks(tasks, intent):
    • Caller must be the app: msg.sender == intent.intentData.appAddress.
    • tx.origin must be an approved executor.
    • intent.vmType must be non-zero.
    • If EVM (vmType == 1) and intent.signature is present:
      • Recover signer from keccak256( user, nonce[user], appAddress, keccak256(intentCalldata) ) with the Ethereum signed message prefix.
      • Signer must equal user.
    • Non-EVM signatures: emitted as an event for off-chain checks.
    • Increments the user nonce after checks.
    • Dedup rule: for each (srcChainId, actionId), ensure it wasn’t executed before. Duplicates inside the same batch are allowed and skip the history check.
    • Emits one TaskSubmitted per task and records actionId → taskId.
  • setTaskAsExecuted(taskId, settlementInfo):
    • Relayer marks a task as executed. Emits TaskExecuted.
Reads: executorRegistry, taskId, isTaskExecuted(taskId), isActionExecuted(chainId, actionId), nonce(user), getDataHashForUser(...).Why it’s safe: App-only submission, executor allow-list, per-user nonce, and (chainId, actionId) dedup keep intents honest and idempotent.
Goal: Make writing apps simple. You focus on building tasks; the kernel handles the rest.What it stores:
  • _messageBox and _accountRegistry.
  • _chainIdToPeripheryContract[chainId] → bytes32.
  • _chainIds[] for discovery.
Key calls:
  • __SkateApp_init(messageBox, accountRegistry): wire dependencies.
  • setChainToPeripheryContract(chainId, peripheryContract):
    • Set or clear the periphery address for a chain.
    • Keeps _chainIds in sync.
  • processIntent(intent):
    • Calls address(this).functionCall(intent.intentData.intentCalldata).
    • Expects your function to return IMessageBox.Task[].
    • Submits those tasks to MessageBox.
Extras: onlyContract modifier is available for internal orchestration.Lookups: chainIdToPeripheryContract, messageBox, accountRegistry, getChainIds.

​
Roles

  • Owner (per contract): Upgrades and wiring.
  • Relayer: Registry admin; marks settlement in MessageBox.
  • Executor (EOA): Must be whitelisted; originates task submissions.
  • App contract: Must be the direct caller of submitTasks.
